How do I activate all my art layers?

Updated on



The art layers consist of the Overlay, Line Art, Colour Art and Underlay Art layers. If you can only see the Line Art and Colour Art layers in the Camera view, follow the steps below to activate all of them.

Step 1: Open the Preferences Window

  1. In the top menu, do one of the following:
    • In Windows, click Edit > Preferences…
    • In macOS click Harmony Advanced > Preferences…
  2. The Preferences dialog box opens:

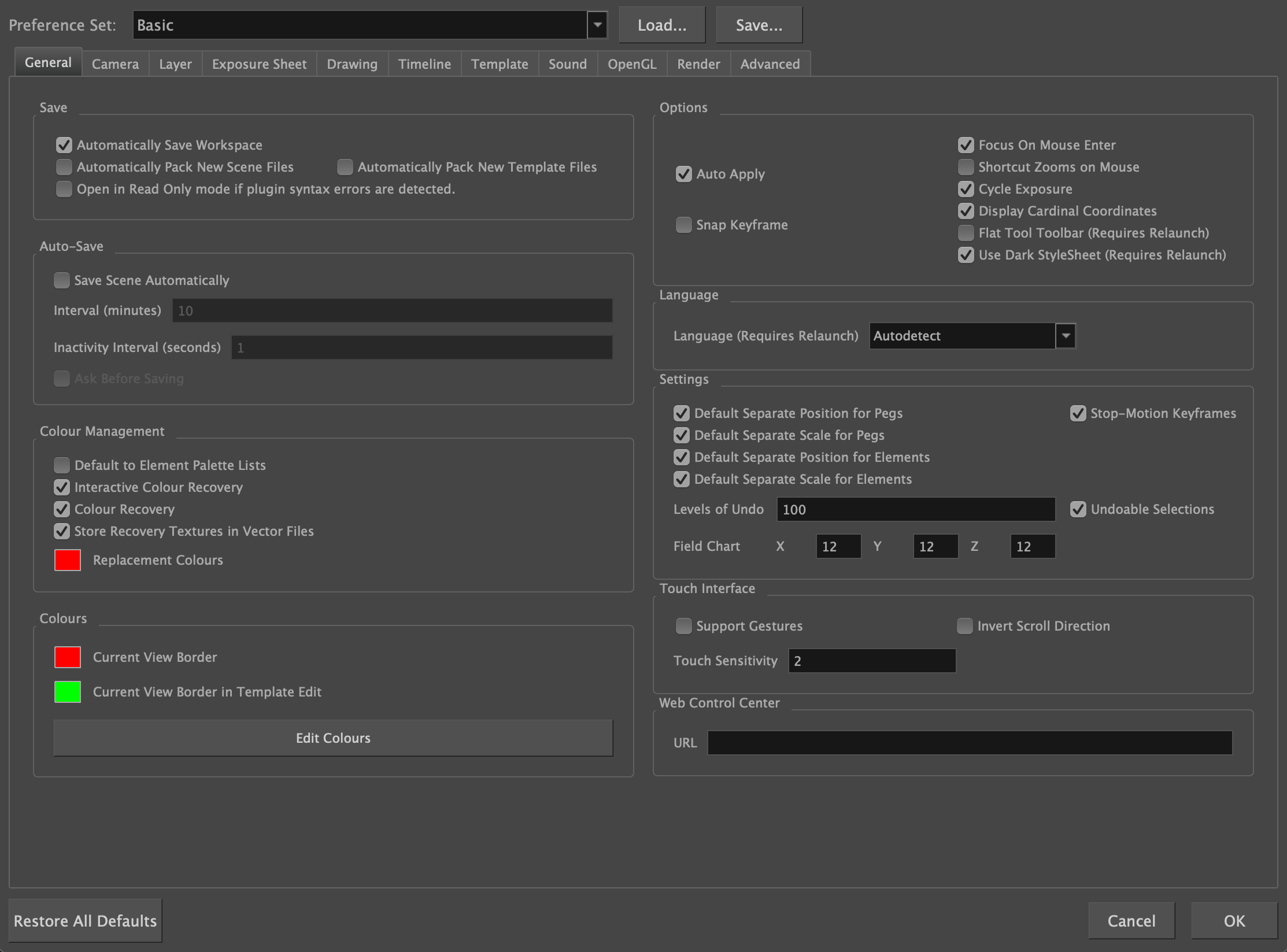

Screenshot 2025-09-15 at 17.35.40.png

Step 2: Activate the art layers

  1. In the Preferences window, click on the Advanced tab and locate the Advanced Options at the top of the section.
  2. Check the box next to the Support Overlay and Underlay Arts option.
Screenshot 2025-09-15 at 17.35.52.png
  1. Click OK to save your preferences.
  2. Your Underlay and Overlay Art layers are now visible in the Camera view.
